      Products Center

      Current Location:Home > Products Center > 8/8/3 3 in 1 Water Filling Machine >

      Product Detail
      • 8/8/3        3 in 1 Water Filling Machine
      • 8/8/3        3 in 1 Water Filling Machine
      • 8/8/3        3 in 1 Water Filling Machine
      • 8/8/3        3 in 1 Water Filling Machine

      8/8/3 3 in 1 Water Filling Machine

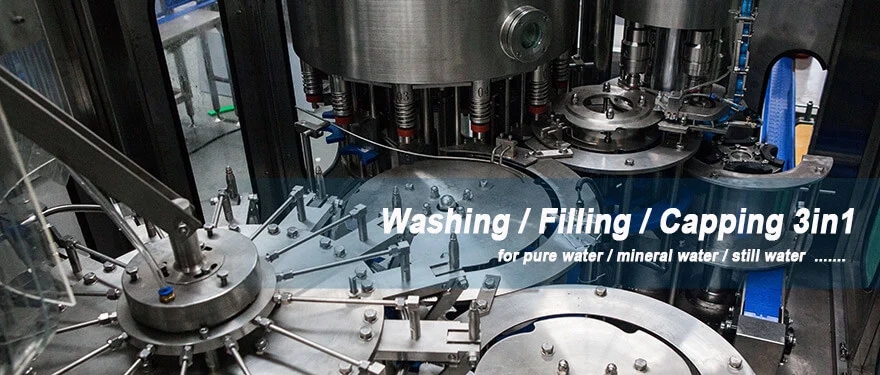

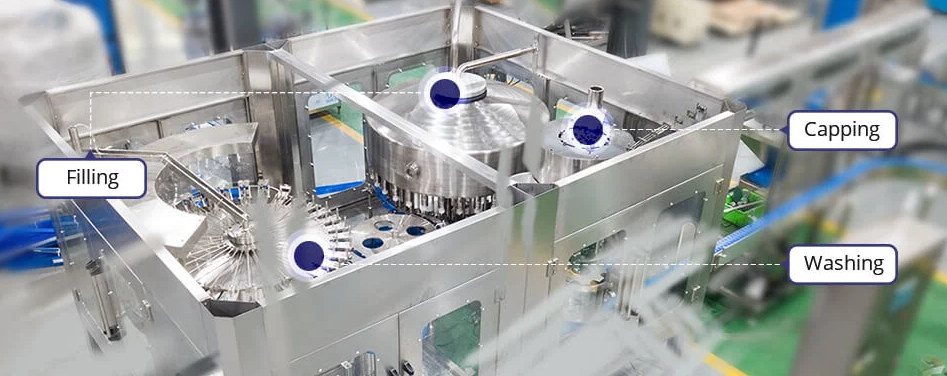

        This machine is mainly used for filling drink water. It combines washing ,filling and capping as one automatic body.

      Product Description

      /instructions


      Main Technical Parameter



      Model

      CGF8-8-3

      CGF14-12-4

      CGF18-18-6

      CGF24-24-8

      CGF32-32-10

      CGF40-40-12

      Capacity(500ml bottles)

      2000

      3000-4000

      6000-8000

      8000-12000

      13000-15000

      16000-18000

      Suitable bottle shapes

      ? ? PET circular or square?

      Bottle diameter(mm)

      ? ? Dia50-Dia115mm

      Bottle height (mm)

      160-320mm

      Compressor air pressure(Mpa)

      0.3-0.7Mpa

      Washing meidum

      Aseptic ? water?

      Rinsing pressure(Mpa)

      >0.06Mpa<0.2Mpa

      Application

      Bottle ? water filling machine

      Total power (KW)

      4.4

      4.4

      4.4

      5.2

      6.2

      7.8

      Overall dimensions(L*W)

      2.3*1.9

      2.5*1.9

      2.8*2.15

      3.1*2.5

      3.8*2.8

      4.5*3.3

      Height?

      2.3m

      2.5m

      2.5m

      2.5m

      2.5m

      2.6m

      Weight(kg)

      2500kg

      3200kg

      4000kg

      4500kg

      6500kg

      8000kg


      ? ? ??
